Standard CAN protocol is also known as the Base frame format. IDE bit is dominant in a standard frame and recessive in an extended frame. The only difference between the two formats is standard frame supports an 11-bit identifier, and the extended frame supports a 29-bit identifier made up of an 11-bit identifier and extended 18-bit identifier. Data Frames consist of fields that provide additional information about the message i.e., Arbitration Field, Control Field, Data Field, CRC Field, a 2-bit Acknowledge Field, and an End of Frame. CAN has four frame types:ĭata Frame contains the actual data for transmission. CAN bus differential signals Frame types of CAN:įrame is a defined structure or format that carries meaningful data(bytes) within the network. When the recessive bit is transmitted CAN High and CAN Low lines are driven to 2.5v, indicating the differential voltage of the recessive bit is 0v.CAN bus terminal resistor of 120 ohms should be added at the physical end of CANH and CANL lines to avoid any signal reflections.įigure 1.

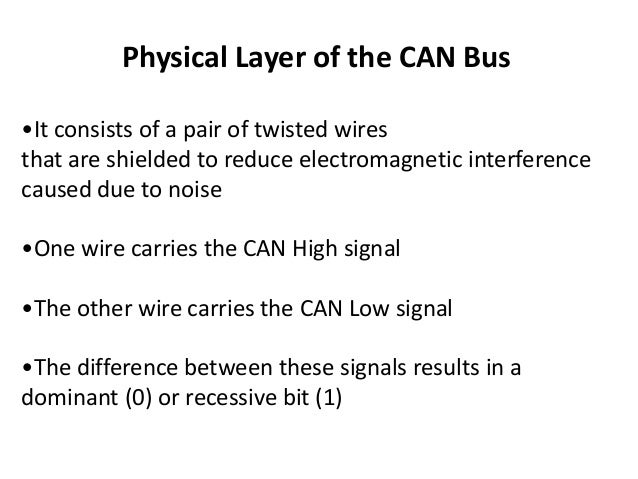

When the dominant bit is transmitted, CAN High goes to 3.5v, and CAN low goes to 1.5v i.e., the differential voltage of the dominant bit is 2v. CAN defines logic “zero” as the dominant bit and logic “one” as the recessive bit. CAN High and CAN Low lines are at 2.5v in ideal condition. CAN Bus Electrical Specification:ĬAN signals processed by CAN transceiver are single-ended signals and differential signals (CANH and CANL). CAN bus follows the arbitration process when multiple nodes try to send data at the same time. The transmitted data packet is received by all nodes in a CAN bus network, but depending on the ID, CAN node decides whether to accept it or not. CAN Transceiver chip is used to adapt signals to CAN bus levels.ĬAN is a message-based protocol where every message is identified by a predefined unique ID.
CAN BUS HIGH AND LOW SERIAL
CAN controller is a chip that can be embedded inside the host controller or added separately, which is needed to manage the data and sends data via transceiver over the serial bus and vice versa. Every node of a CAN bus system has a host microcontroller unit, CAN controller and, CAN transceiver in it.
CAN BUS HIGH AND LOW SOFTWARE
Each node must have hardware and software embedded in them for data exchange. Each electronic device in a CAN network is called a node. Hence when compared with the other protocols used in automotive systems i.e., CAN vs LIN, CAN is robust due to less complexity.ĬAN Protocol can be defined as a set of rules for transmitting and receiving messages in a network of electronic devices connected through a serial bus. With the help of the CAN bus system, which allows ECUs to communicate with each other without much complexity by just connecting each ECU to the common serial bus. But when the functions in the automobile system increased, it was difficult to maintain because of the tedious wiring system. Before CAN was introduced, each electronic device is connected to other devices using many wires to enable communication. They are designed specially to meet the Automobile Industry needs.
